General |
|
|
Model |

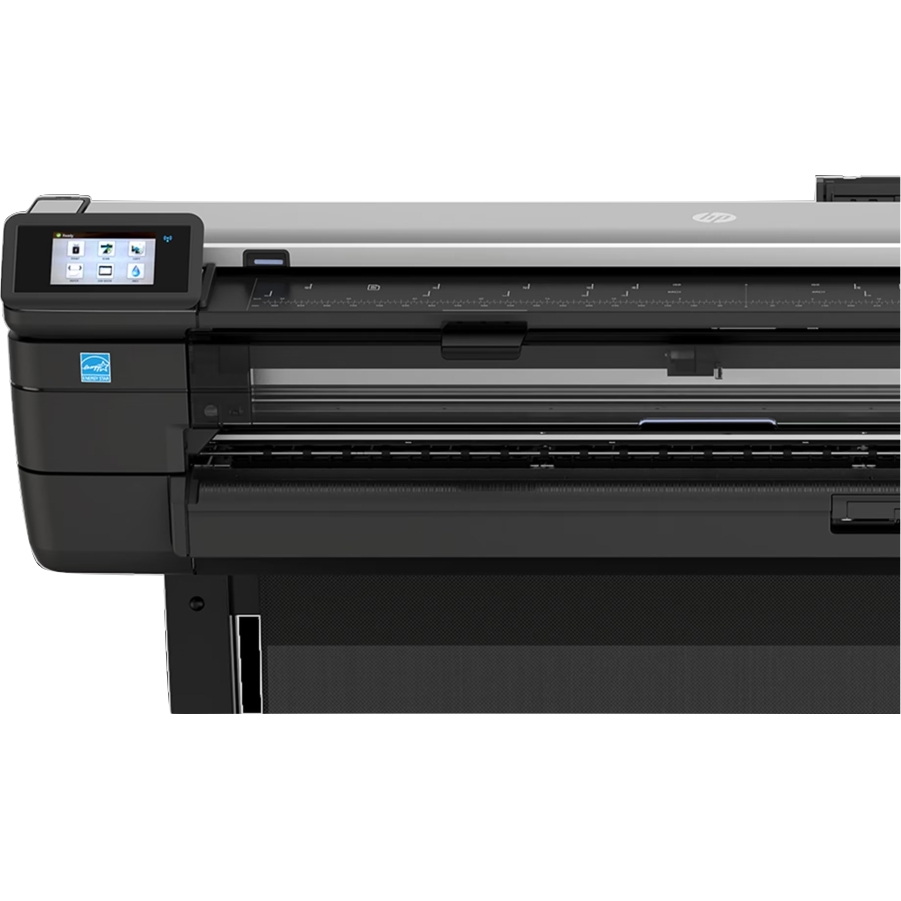

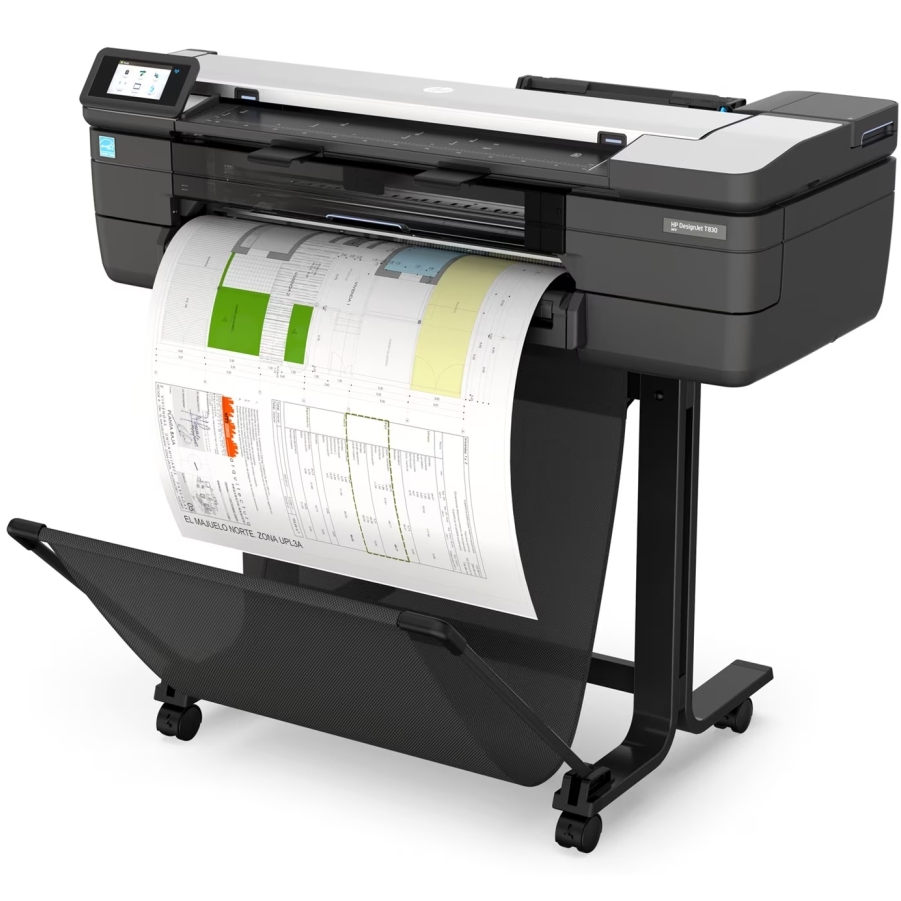

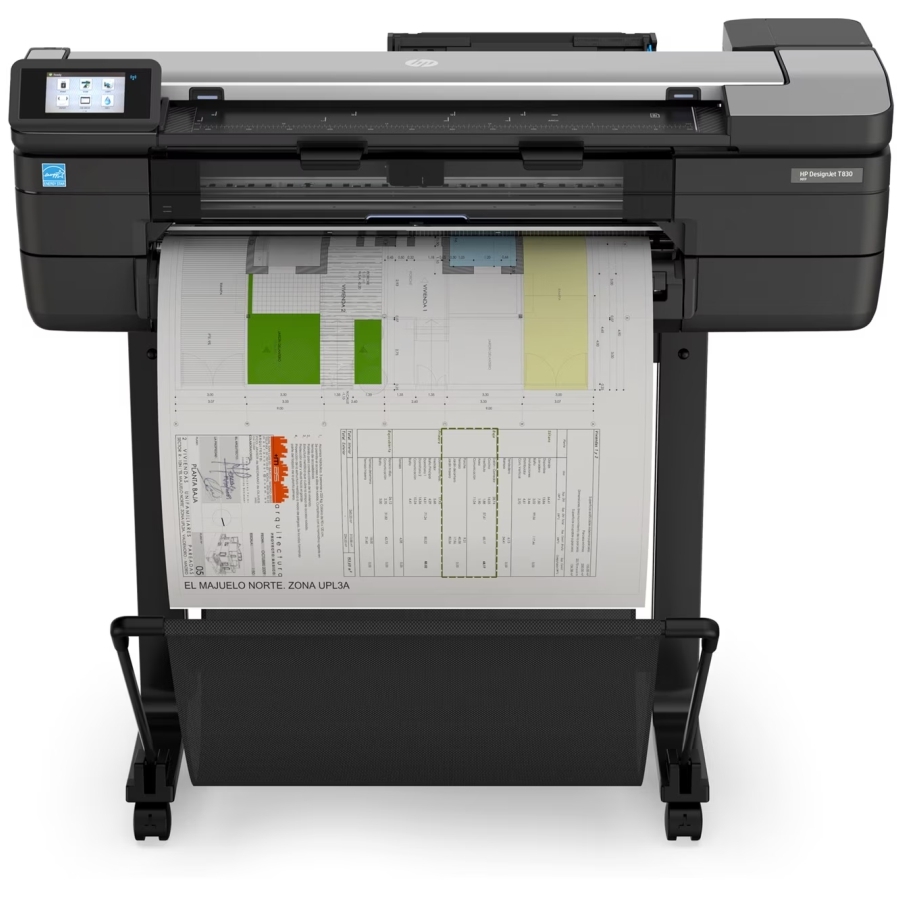

HP DesignJet T830 (24 inch) Large Format Multifunction Plotter |
|
Print speed |
26 sec/page on A1, 81 A1 prints per hour |
|
Print resolution |
Up to 2400 x 1200 optimized dpi |
|
Technology |
HP Thermal Inkjet |
|
Margins |
Roll: 5 x 5 x 5 x 5 mm; Sheet: 5 x 5 x 5 x 5 mm |
|

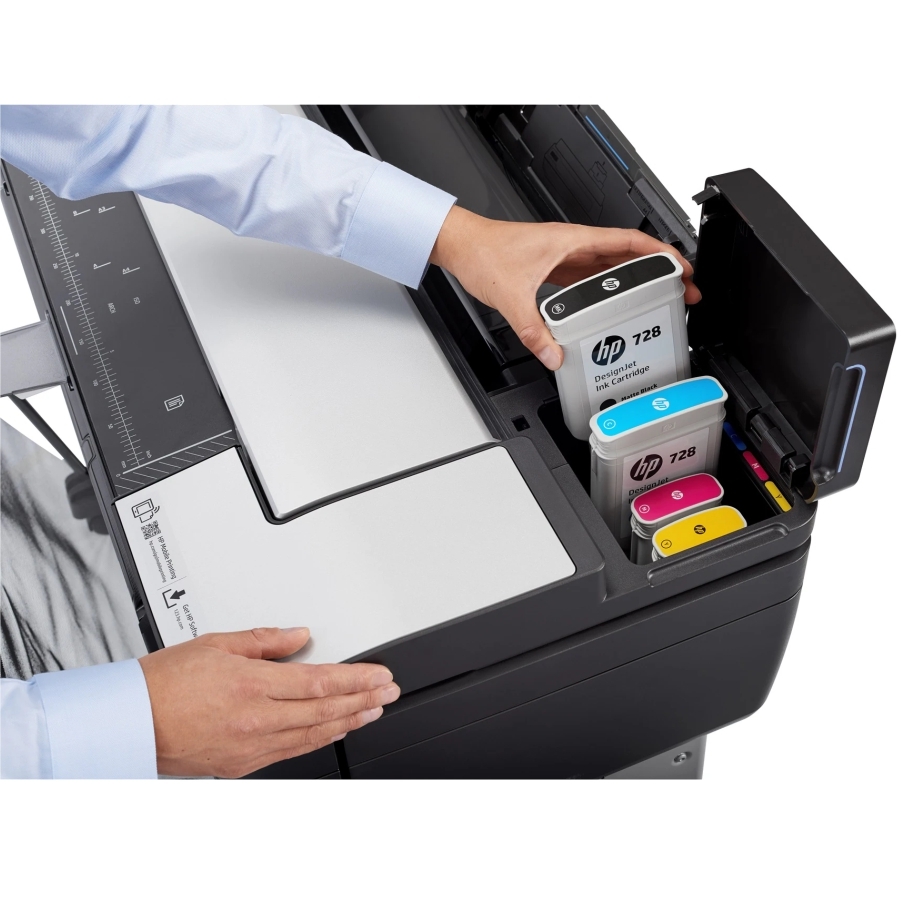

Ink types |
Dye-based (C, M, Y); pigment-based (mK) |
|
Ink drop |
6 pl (C, M, Y); 12.6 pl (mK) |
|
Print heads |
1 (C, M, Y, mK) |
|
Print head nozzles |
1376 |
|
Multifunction capabilities |
|
|
Scan speed |
Up to 3.81 cm/sec (color, 200 dpi) Up to 11.43 cm/sec (grayscale, 200 dpi) |
|
Scan resolution |
Up to 600 dpi |
|
Scan format |
JPEG, PDF, TIFF |
|
Media |
|
|
Handling |
Sheet feed, roll feed, input tray, media bin, automatic horizontal cutter |
|
Roll size |
279 to 610 mm |
|
Sheet size |
Input tray: 210 x 279 to 330 x 482 mm ; |
|
Grammage |
60 to 280 g/m² (roll/manual feed); 60 to 220 g/m² (input tray) |
|
Applications |
Line drawings; Renderings; Presentations |
|
Memory |
1 GB |
|
Connectivity |
|
|
Interfaces |
Gigabit Ethernet (1000Base-T), Wi-Fi 802.11b/g/n |
|
Native print languages |
HP-GL/2, HP-RTL, TIFF, JPEG, CALS G4, URF |
|
Printing paths |
Wi-Fi Direct to enable mobile printing via HP ePrint, Apple AirPrint and HP Smart app for Android and iOS devices, Windows and macOS printer drivers, printing support for Chrome OS, print from USB pen drive |
|
Dimensions (w x d x h) |
|
|
Printer |
1098 x 605 x 1155 mm |
|
Shipping |
1310 x 570 x 645 mm |
|
HP Software and solutions |
HP Click, HP Smart app, HP Support Assistant, HP Print Preview for Windows, HP DesignJet Utility for macOS and Windows |
|
Warranty |
One-year limited warranty. |
